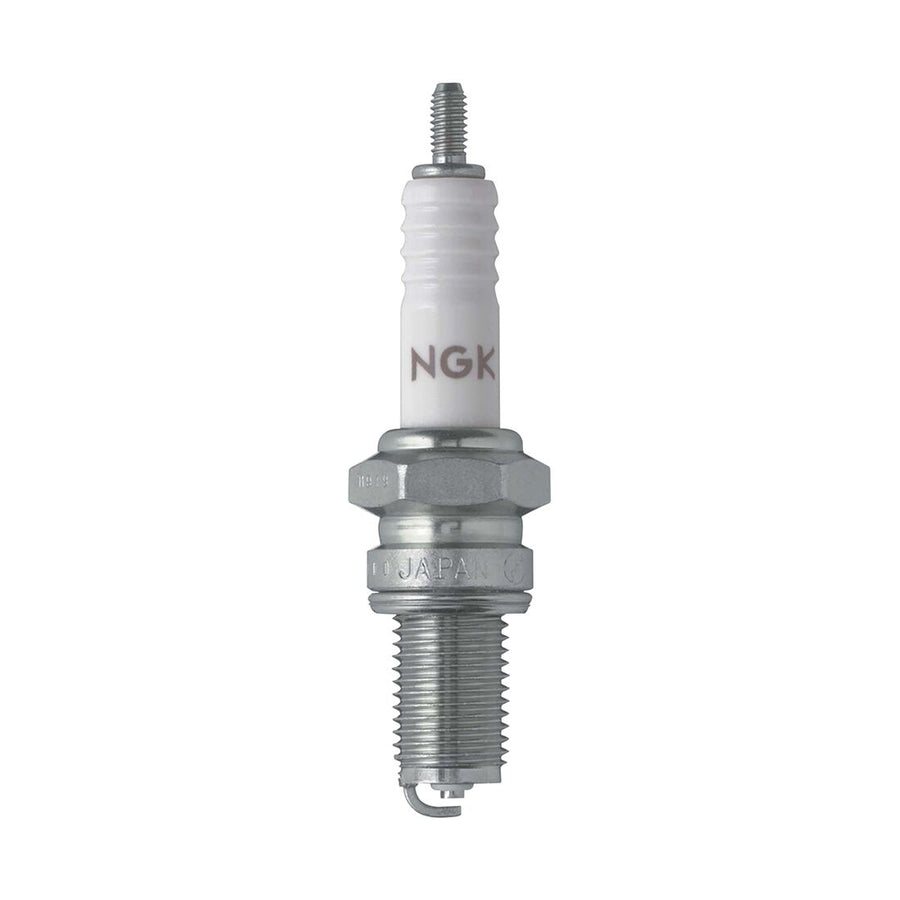

NGK D8EA Nickel Spark Plug

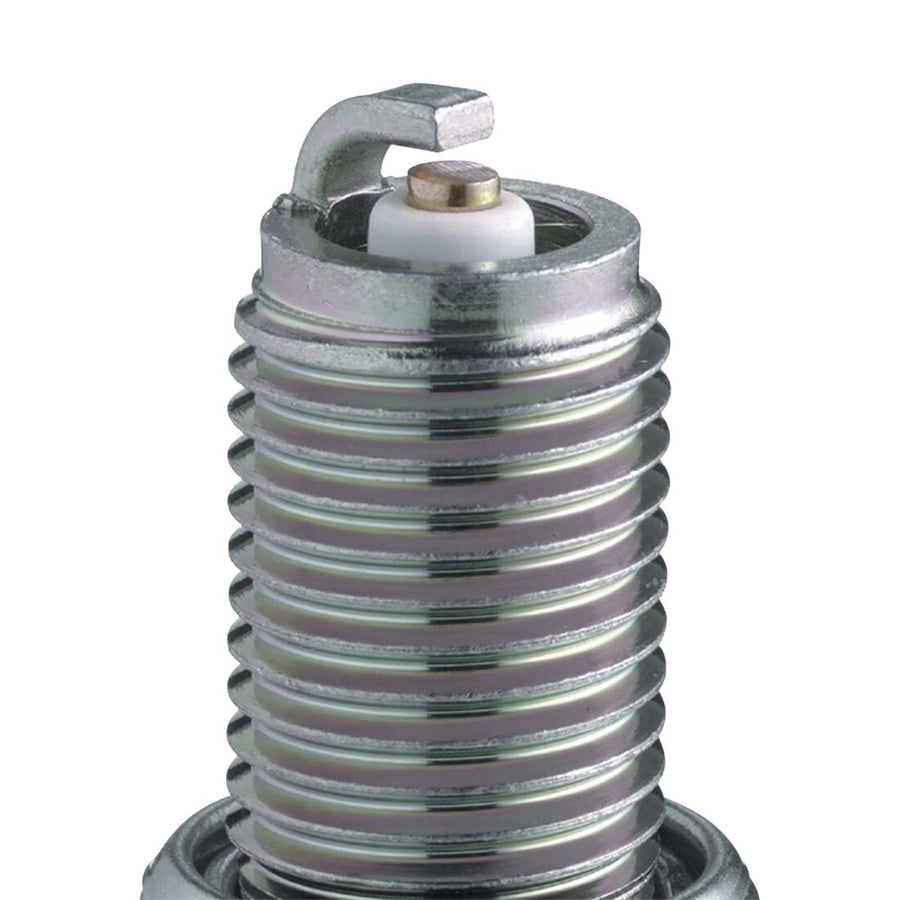

The NGK D8EA is a standard nickel-alloy spark plug, built to original-equipment standards. A V-groove in the centre electrode helps the spark form at the edge for easier starting and smoother idling. It has a 12mm thread, 19mm reach, 18mm hex, 0.7mm gap and heat range 8. It comes pre-gapped and is sold individually – order one per cylinder. Choose by part number: match the code printed on your old plug, the plug listed in your owner's manual or service book, or NGK's own part finder.

Key features

• Nickel-alloy electrodes
• V-groove centre electrode for easier ignition
• Built to OE standards
• 12mm thread, 19mm reach
• 18mm hex – use a 18mm plug socket
• Pre-gapped to 0.7mm
• Sold individually

What's in the box

1 × spark plug

FAQs

How do I know this is the right plug?

Match the NGK part number on your existing plugs, in your owner's manual or service book, or from NGK's part finder. Don't change to a different heat range unless an engine specialist advises it. Add your vehicle when you order – we check it against NGK's official application data before your order is sent.

What does it cross-reference to?

NGK's published cross-reference lists the D8EA as the NGK equivalent of: Denso X24ES-U, Bosch X4CS, Bosch X5CC, Champion A6, Champion R6, Champion R6J, Motorcraft HG2, Motorcraft HG22, Motorcraft HG22C, Motorcraft HG2C, Motorcraft HG2CU, ACDelco S121XL, Autolite 2755, Autolite 3854 and others. Always confirm against your vehicle's specified plug.

Do I need to re-gap it?

No – it comes pre-gapped to 0.7mm. Check the gap if it has been dropped, but don't try to adjust fine iridium or platinum tips.

How many do I need?

One per cylinder – most 4-cylinder engines need 4, V6 engines 6 and V8s 8 (some older engines use two plugs per cylinder).
