Boat Trailer Rollers, Brackets and Maintenance: Keeping Your Trailer Ramp-Ready
How to choose and measure boat trailer rollers and brackets, which roller material suits your hull, winch handles, greasing bearings with marine grease, salt-water care and NZ WoF basics.
In this guide
Match rollers to your hull – hard blue polypropylene for aluminium, softer rollers for fibreglass – and measure the spindle bore, bracket width and stem size before ordering. Rinse the trailer with fresh water after every launch, grease bearings with a marine grease, and keep the lights and plug corrosion-free for the WoF.
Salt water is hard on boat trailers. Seized rollers make launching and retrieving a struggle, and neglected bearings and lights are the usual reasons trailers fail their WoF or break down on the way to the ramp.
Boat trailer care at a glance
| Part | What to check | How often |
|---|---|---|
| Rollers | Cracks, flat spots, rollers that don't spin | Every few trips |
| Wheel bearings | Play, noise or roughness when the wheel is spun | Before each season and after long trips |
| Lights and plug | Corroded pins, failed bulbs, cracked lenses | Before every trip |
| Winch strap or cable | Fraying, rust and a secure hook | Before every trip |
| Coupling and safety chain | Wear, corrosion, secure attachment | Before every trip |
| Frame | Rust, especially near the drawbar and spring mounts | After every launch (rinse) and at the WoF |

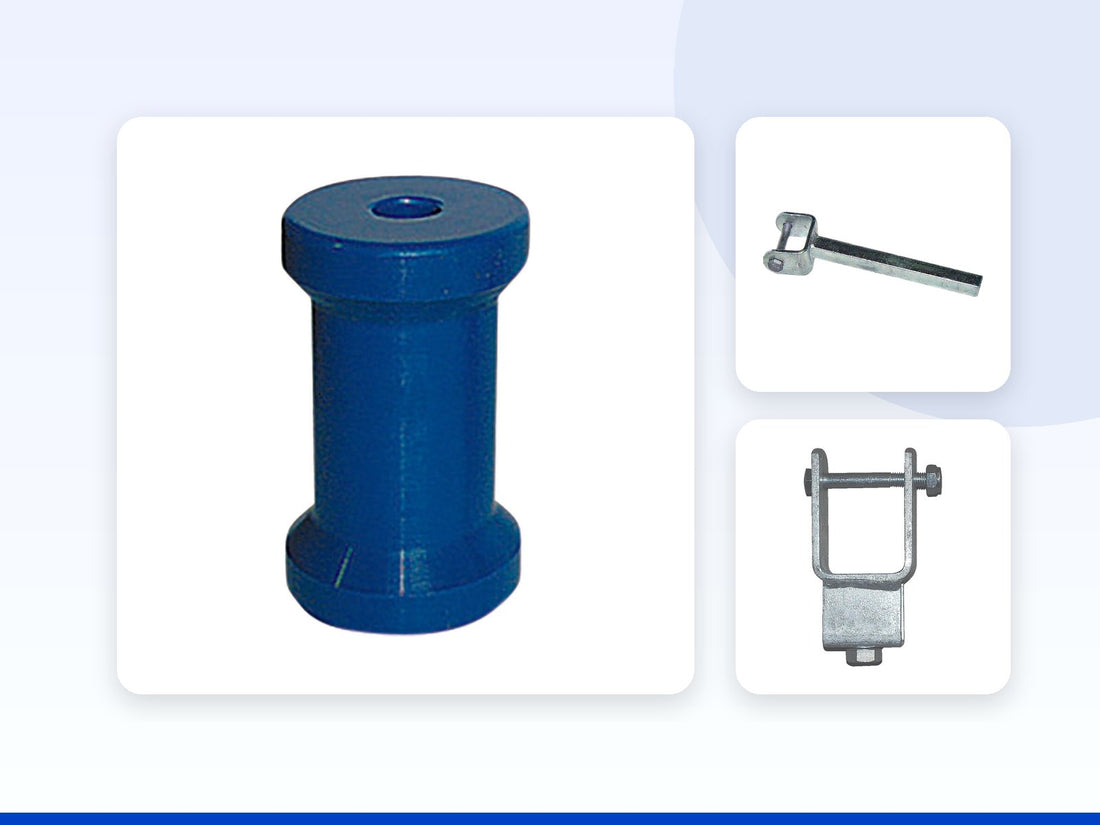

1. Choosing rollers for your hull
| Roller material | Character | Best for |
|---|---|---|
| Blue polypropylene | Hard, very durable, low hull marking | Aluminium boats |
| Red polyurethane or black rubber | Softer, more grip and cushioning | Fibreglass hulls |
That's Viking's own guidance for its rollers, such as the Viking 4.5" blue keel roller. Replace rollers that are cracked, flat-spotted or no longer spin freely.
2. Measure before you order
- Rollers: the length and the bore (spindle hole) – for example a 17 mm bore.
- Brackets: the inner width and the stem size – the Viking 8" angled yoke bracket has a 54 mm inner width and suits an 18 mm square stem.
- Cross members: the tube size – the Viking side adjuster clamps onto a 2" × 2" (50 × 50 mm) square tube without drilling.
- Galvanised brackets and fittings resist salt water far better than painted steel.
Not sure? Send us a photo and your measurements and we'll help you match the part.
Rollers and brackets
3. The winch
Winch handles have a habit of disappearing at the ramp. The Atlantic removable winch handle fits a 22 mm hex drive – measure across the flats of your winch's hex first. Check the winch strap or cable for fraying and replace it before it lets go.
4. Bearings and grease
- Wheel bearings take the most punishment from dunking in salt water. Check for play and noise, and re-grease or replace them as needed.
- Use a water-resistant marine grease, such as Penrite Marine grease or Castrol Off Road & Marine, in a grease gun.
- Let hot hubs cool before backing into the water – hot bearings can suck in water as they cool.
To check a bearing, jack the wheel off the ground (with the trailer chocked and supported), then rock the wheel top and bottom to feel for play and spin it to listen for roughness. Grease guns and couplers are in our lubrication tools, and replacement grease nipples in our split pins and grease nipples.
Marine grease and grease guns
5. After every launch
- Rinse the whole trailer with fresh water – frame, rollers, springs, brakes and hubs.
- Rinse the lights and the trailer plug, then let them dry. Salt quickly corrodes plug pins and bulb holders.
- A light spray of a water-displacing lubricant on springs, winch and fittings helps keep corrosion at bay – see our lubricant guide.
6. Registration and WoF
In New Zealand, light trailers up to 3,500 kg – including boat trailers – must be registered (licensed) and have a current Warrant of Fitness. The WoF checks things like the lights, reflectors, number-plate light, tyres and rust in safety-critical areas. See NZTA's light trailer requirements. Our trailer plug guide covers connectors and lighting faults.
A few items from NZTA's trailer WoF requirements that salt water often affects:
- Wheel bearings: a bearing with play beyond the manufacturer's specification, one that's over-tight or binding, or one that feels or sounds rough when rotated is a reason for rejection (hubs and axles).
- Drawbar and coupling: they must be securely attached, with no missing or significantly corroded bolts, no corrosion damage within 150 mm of a mounting point, and a coupling that isn't worn beyond the maker's specification (drawbar and coupling).
- Safety chain: a trailer with a laden weight of 2,000 kg or less without a compliant breakaway brake needs a securely attached safety chain or cable. Between 2,001 and 2,500 kg without a compliant breakaway brake, it needs two safety chains that cross when connected.
- Reflectors: at least one red rear-facing reflector on each side, fitted as a pair, not obscured and visible from 100 m – faded or badly scratched reflectors fail (rear reflectors).
7. Before you tow
- Check the coupling is fully latched onto the tow ball and the safety chain is attached.
- Plug in the trailer and test the tail lights, brake lights and both indicators with a helper.
- Wind the jockey wheel right up or remove it – spares and clamps are in our jockey wheels and accessories.
- Secure the boat with the winch strap and transom tie-downs, and stow loose gear – see our tie-downs and straps.
- Check the tyre pressures, including the spare.
Common mistakes
- Skipping the fresh-water rinse "just this once" – salt starts working straight away.
- Dunking hot hubs straight after a long drive.
- Ordering rollers by eye. Bore, length and bracket sizes vary – measure first.
- Ignoring a slow-failing light. Corroded pins in the plug are the usual cause – clean them, then protect them with dielectric grease. Spare plugs and sockets are in our trailer plugs and adaptors.
Sources: NZTA VIRM: trailer hubs and axles (WoF); NZTA VIRM: light trailer drawbar and kingpin (WoF); NZTA VIRM: trailer rear reflectors (WoF)
Trailer plugs and adaptors
FAQs
Which boat trailer rollers are best for a fibreglass boat?
Softer rollers, such as red polyurethane or black rubber, are generally better for fibreglass hulls. Hard blue polypropylene rollers suit aluminium boats.
How do I know which roller size to buy?
Measure the roller length and the bore (spindle hole) diameter, and check the bracket width and stem size before ordering.
Do boat trailers need a WoF in NZ?
Yes. Light trailers up to 3,500 kg, including boat trailers, must be registered and have a current Warrant of Fitness.
What grease should I use on boat trailer bearings?
A water-resistant marine or wheel bearing grease, applied with a grease gun. Check the bearings regularly for play and noise.
How do I stop my trailer lights failing?
Rinse the lights and plug with fresh water after every launch and let them dry. Clean corroded pins and check the earth connection.
Does my boat trailer need a safety chain?
If its laden weight is 2,000 kg or less and it has no compliant breakaway brake, yes – a securely attached safety chain or cable. Between 2,001 and 2,500 kg without a compliant breakaway brake, NZTA requires two safety chains that cross when connected.
Prices and stock change often – check the product page for current details.
